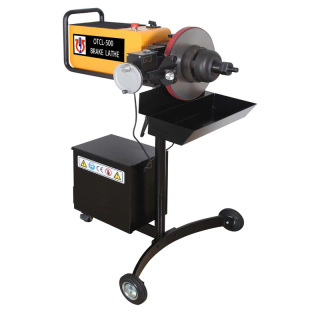

On-car Brake Disc Lathe Machine
On-car Brake Disc Lathe Machine is a kind of On-car disc machine and Brake Disc Skimming Machine , which is especially designed for small vehicles to cut, skim and repair and resurface brake rotors, such as on passenger cars, medium duty trucks. On-car Brake Disc Lathe Machine can be attached directly on vehicles for work, thus enables easier and safer car brake disc resurfacing and improves the performance of brake disc and shortens the braking distance to guarantee safer operations.
On-car Brake Disc Lathe Machine Introduction
On-car Brake Disc Lathe Machine is a kind of On-car disc machine and Brake Disc Skimming Machine , which is especially designed for small vehicles to cut, skim and repair and resurface brake rotors, such as on passenger cars, medium duty trucks. On-car Brake Disc Lathe Machine can be attached directly on vehicles for work, thus enables easier and safer car brake disc resurfacing and improves the performance of brake disc and shortens the braking distance to guarantee safer operations.
Product Features
1. Eliminate the assembly error when disassembling and assembling the brake disc.
2. On the car repair without the need of disassembling the brake disc to save labor and time.
3. It is convenient for the technicians to compare the run-out tolerance before and after cutting brake disc.
4. Cut the brake disc when replacing the brake pads, assure the brake effect, and prolong the service life of brake disc and brake pads.
Main specifications
Working Height Min/Max | 1000/1250mm | Drive Speed | 98RPM |
Maximum Diameter Of Brake Disc | 400mm | Electrical Specifications/Motor Power | 220V/50Hz ,110V/60Hz, 750W |
Thickness Of Brake Disc | 6-40mm | Cutting Depth Per Knob | 0.005-0.015mm |
Cutting Precision | ≤0.00-0.003mm | Brake Disc Surface Roughness Ra | 1.5-2.0μm |
Gross Weight | 75KG | Dimension | 1100 × 530 × 340mm |
Product Details
1. A Set of Standard Adapters
2. Twin Cutter
3. Switches
4. Main Body
