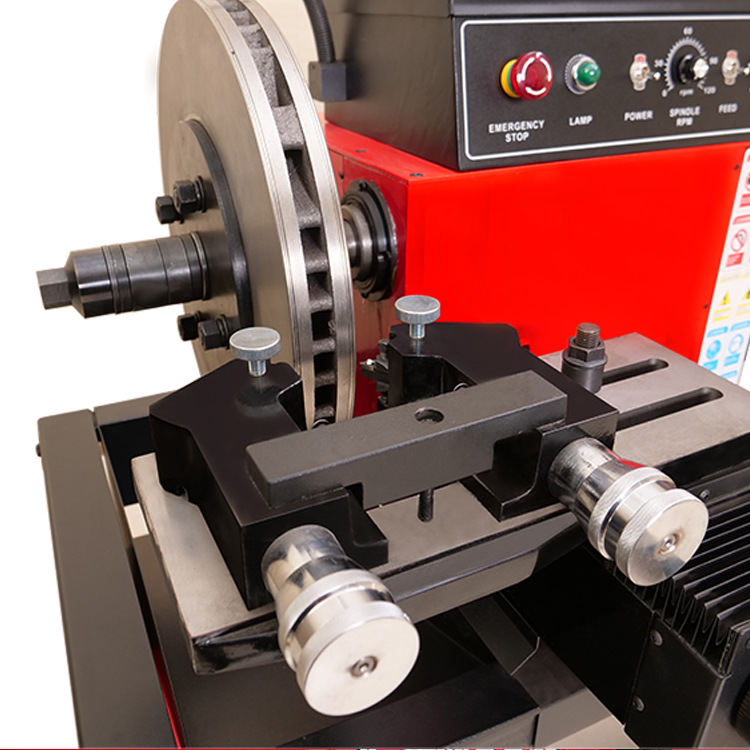

Brake Disc Drum Machine
Brake Disc/Drum Machine is a kind of disc and drum repair machine, which will achieve the purpose of repairing vehicles by skimming and cutting brake disc and drum. Brake Disc/Drum Machine is also called the Skimmer for Brake Disc and Drum, which is the ideal car repair equipment for brake disc and drum used in 4s stores, vehicle repairing shops, tyre garage shops and auto beauty shops.
Brake Disc Drum Machine Introduction
Brake Disc/Drum Machine is a kind of disc and drum repair machine, which will achieve the purpose of repairing vehicles by skimming and cutting brake disc and drum. Brake Disc/Drum Machine is also called the Skimmer for Brake Disc and Drum, which is the ideal car repair equipment for brake disc and drum used in 4s stores, vehicle repairing shops, tyre garage shops and auto beauty shops.
Product Features
1. Brake Disc/Drum Machine adpots the DC motor and will meet the needs of industrial motion control system.
2. The changeable adapter system eliminates the needs of conventional clamps and taper cones.
3. Precision twin cutter and the drum-disc changeover setting will improve the cutting performance.
4. Infinitely variable setting of spindle revolution and cross feeding speed will make rough and finish cutting available in a very quick way.
5. Separate motors on the drum and rotor feed help maximize the main motor's efficiency.
Main specifications
Spindle Travel | 6.875”(175mm) | Spindle Speed | 70,88,118 RPM |
Spindle Feed Speed | 0.002”(0.05mm)-0.02”(0.5mm) Rev | Cross Feed Speed | 0.002”(0.05mm)-0.02”(0.5mm) Rev |
Handwheel Graduations | 0.002”(0.05mm) | Rotor Diameter | 7”-15”(180-381mm) |
Rotor Thickness | 1.875”(48mm) | Drum Diameter | 6”-17.7” (152-450mm) |
Drum Depth | 6.875”(175mm) | Motor | 110V/220V/380V.50/60Hz |
Gross Weight | 290KG | Dimension | 1010×950×1150mm |
Product Details
1. A Set of Standard Adapters
2. Electrical Control Box
3. Disc Repairing Cutters
4. Cutting Tips
5. Spindle
