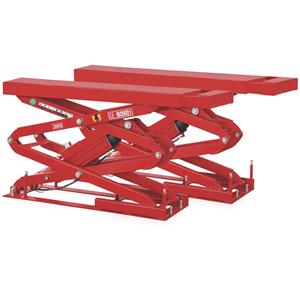

3T In-ground Scissor Lift
3T In-ground Scissor Lift is suitable for mini car's maintenance and repair activities.
3T In-ground Scissor Lift Introduction
3T In-ground Scissor Lift is suitable for mini car's maintenance and repair activities.
Product Features:
1. Utilizing ground hidden flat structure, and cover small space.
2. Pneumatic self-locking, safe and reliable.
3. Hydraulic system adopts an integrated valve plate system with imported seal, ensure the stability and working life of the machine.
4. With manual pre-interface, when power supply is off, life can be down by manual.
5. This machine is composed of four parts, hydraulic system, pneumatic system and electric system.
6. Oil cylinder with upper return oil, prevent oil cylinder rust.
Technical specifications:
Lifting capacity | 3000kg |
Lifting height | 2100mm |
Min.height | 340mm |
Lifting time | 50s-60s |
Length of the platform | 1540mm |
Platform width | 550mm |
Motor power | 3.0kw-380v/3.0kw-220v |
Oil pressure rating | 24Mpa |
Air pressure | 0.6-0.8 MPa |
Weight | 800kg |
Product Details

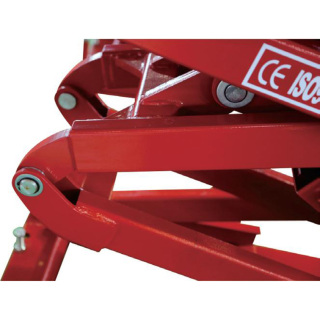

1. Pneumatic Release
2. Oil Injection Hole

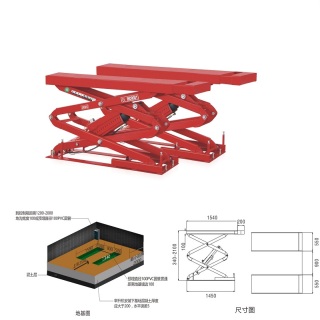

3. Dimensions
