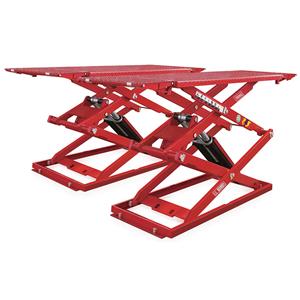

3.5T Ultra Thin Scissor Lift
3.5T Ultra Thin Scissor Lift is suitable for mini car's maintenance and repair activities.
3.5T Ultra Thin Scissor Lift Introduction
3.5T Ultra Thin Scissor Lift is suitable for mini car's maintenance and repair activities.
Product Features:
1. Ultrathin structure, surface mount, the initial landing height is 105mm, occupied small space.
2. The Italy original imported hydraulic pump valve and electrical components.
3. Double cylinder drive, safe and stable synchronization.
4. Meet the needs of different vehicles repair and detection.
5. One button to adjust balance and upper return oil, prevent oil cylinder rust.
Technical specifications:
Lifting capacity | 3500kg |
Lifting height | 1850mm |
Min.height | 105mm |
Lifting time | 70s-90s |
Length of the platform | 1450mm |
Platform width | 635mm |
Motor power | 3.0kw-380v/3.0kw-220v |
Oil pressure rating | 24Mpa |
Air pressure | 0.6-0.8 MPa |
Weight | 850kg |
Product Details
1. Power Paw

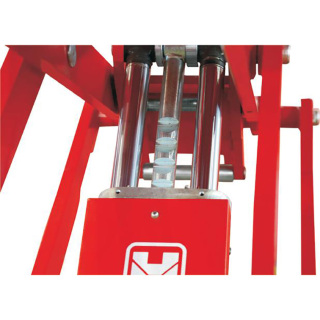

2. Pneumatic Release
3. Base Approach Switch
4. Dimensions
