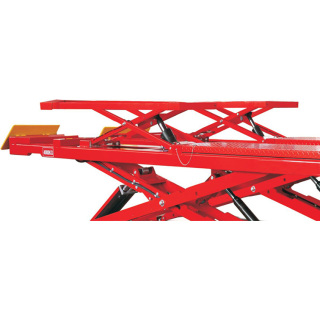

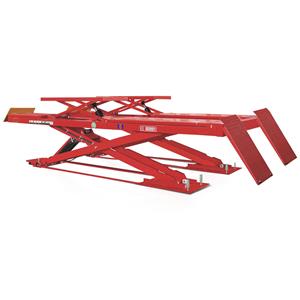

4T Ultra Thin Scissor Lift
4T Ultra Thin Scissor Lift applies to all type vehicles for four wheel alignment and maintenance activities.
4T Ultra Thin Scissor Lift Introduction
4T Ultra Thin Scissor Lift applies to all type vehicles for four wheel alignment and maintenance activities.
Product Features:
1. This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
2. The machine's mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear, hydraulic and electrical tripling protection, safe, reliable, synchronous stable running. Using high performance plate produced.
3. Oil cylinder with upper return oil, prevent oil cylinder rust.
Technical specifications:
Lifting capacity | 4000kg |
Lifting height | (Main) 1750mm (Jack) 350mm |
Min.height | 200mm |
Lifting time | 50s-60s |
Length of the platform | 4500mm |
Platform width | 645mm |
Motor power | 3.0kw-380v/3.0kw-220v |
Oil pressure rating | 24Mpa |
Air pressure | 0.6-0.8 MPa |
Weight | 2320kg |
Product Details
1. Primary Pneumatic Release
2. Oil Injection Hole
3. Secondary Pneumatic Release

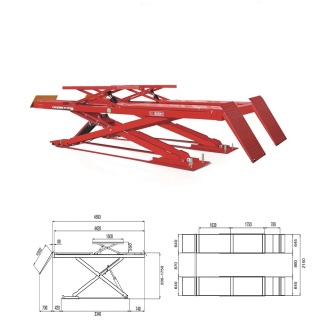

4. Dimensions
