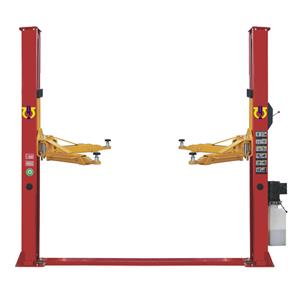

4T Two Post Lift Of Manual Release
4T Two Post Lift of Manual Release is the frequently used lifting equipment in the vehicle repairing and maintenance units. 4T Two Post Lift of Manual Release is mainly applied to all small type vehicle maintenance.
4T Two Post Lift of Manual Release Introduction
4T Two Post Lift of Manual Release is the frequently used lifting equipment in the vehicle repairing and maintenance units. 4T Two Post Lift of Manual Release is mainly applied to all small type vehicle maintenance.
Product Features
1. 4T Two Post Lift of Manual Release adopts double cylinder, 4*4 higher and stronger chain, the wire rope balance system.
2. The rubber support pad adopts double helix adjustment height and height increase joint.
3. The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
4. 4T Two Post Lift of Manual Release is equipped with One side manual release, Rubber pad door-opening protection and Secure fence, which is both safe and reliable.
Main Specifications
Lifting capacity | 4000kg |
Lifting height | 1850mm |
Min.height | 120mm |
Pass width | 2500mm |
Column width | 2790mm |
Total width | 3320mm |
Lifting time | 50s-60s |
Motor power | 2.2kw-380v/2.2kw-220v |
Oil pressure rating | 24Mpa |
Weight | 590kg |
Product Details

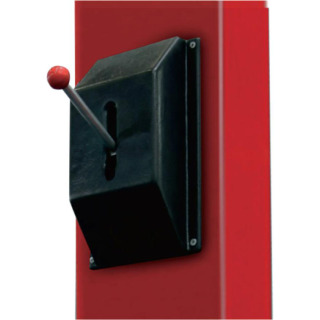

1. One Side Manual Release
2. Vehicle Pterygoid Lamina Shaped by Once
3. Arm Lock
4. Anti-collision Block

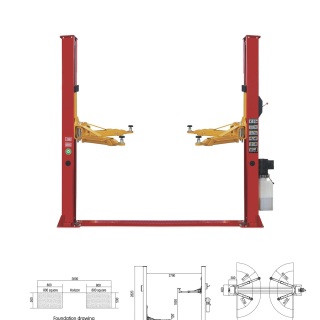

5. Dimensions
