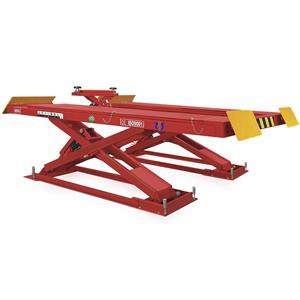

4T In-ground Pulley Scissor Lift
4T In-ground Pulley Scissor Lift applies to all small type vehicle maintenance and repair activities.
4T In-ground Pulley Scissor Lift Introduction
4T In-ground Pulley Scissor Lift applies to all small type vehicle maintenance and repair activities.
Product Features:
1. Hydraulic synchronous control, synchronization precision.
2. The hydraulic system adopts Italy electromagnetic valve and imports of seal, ensure the stability and service life of the machine.
3. This machine is composed of a machine frame, hydraulic system, pneumatic system and electric system is composed of four parts.
4. Can be matched with various locating turntable.
5. Oil cylinder with upper return oil, prevent oil cylinder rust.
Technical specifications:
Lifting capacity | 4000kg |
Lifting height | (Main) 1700mm (Jack) 450mm |
Min.height | 340mm |
Lifting time | 50s-60s |
Length of the platform | 4480mm |
Platform width | 600mm |
Motor power | 3.0kw-380v/3.0kw-220v |
Oil pressure rating | 24Mpa |
Air pressure | 0.6-0.8 MPa |
Weight | 1900kg |
Product Details
1. Oil Injection Hole
2. Pneumatic Release

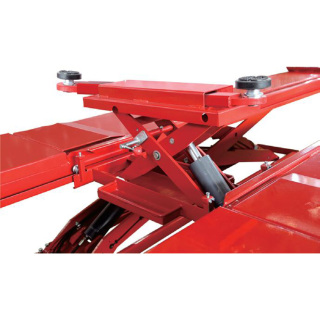

3. Pulley Arm and Tray Adjustable

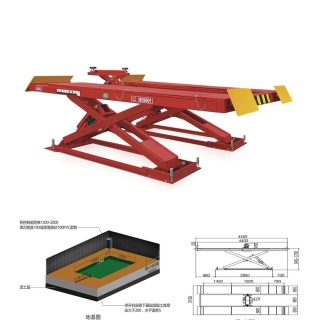

4. Dimensions
