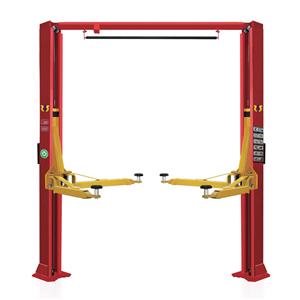

4T Clear Floor Lift Of Asymmetric One-side Manual Release
4T Clear Floor Lift of Asymmetric One-side Manual Release applies to all small type vehicle maintenance and repair activities.
4T Clear Floor Lift of Asymmetric One-side Manual Release Introduction
4T Clear Floor Lift of Asymmetric One-side Manual Release applies to all small type vehicle maintenance and repair activities.
Features:
1. Clear floor design, save space.
2. Adopt double cylinder, 4*4 higher and stronger chain, the wire rope balance system, NO CHAINS.
3. One side manual release.
4. Rubber pad door-opening protection.
5. Rubber support with first, second and third level spiral to adjust the height.
6. Limit switch.
7. The arm adopts long and short arm design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
Technical specifications:
Lifting capacity | 4500kg |
Lifting height | 1900mm |
Min.height | 120mm |
Pass width | 2555mm |
Column width | 2865mm |
Total width | 3650mm |
Lifting time | 50s-60s |
Motor power | 2.2kw-380v/2.2kw-220v |
Oil pressure rating | 24Mpa |
Weight | 730kg |
Product Details

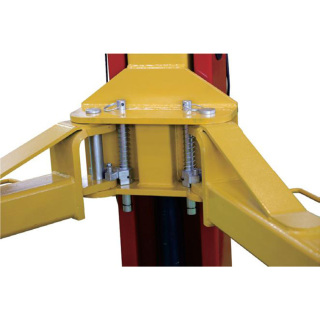

1. One-side Manual Release
2. Heighten+tray with Screw
3. Vehicle Pterygoid Lamina Shaped by Once
4. Arm Lock
5. Column Cross Beam 45 Degree Design, Convenient to Get Off

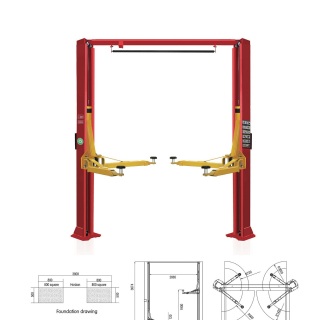

6. Dimensions
