2.7T Mid-position Scissor Lift
2.7T Mid-position Scissor Lift is suitable for mini car's maintenance and repair activities.
2.7T Mid-position Scissor Lift Introduction
2.7T Mid-position Scissor Lift is suitable for mini car's maintenance and repair activities.
Product Features
1. Pneumatic release, safe and reliable.
2. The initial height is lower (10mm), have sliding ramp and pulley.
3. Adopt axis driven, synchronization performance good, lifting capacity well.
4. Hydraulic system adopted imported electromagnetic valve and seal components, ensure the stability and working life of the machine.
5. When the power supply is off, lift and vehicle can be down by manual.
6. Rising and falling have safety alarm device.
7. Oil cylinder with upper return oil, prevent oil cylinder rust.
Technical specifications:
Lifting capacity | 2700kg |
Lifting height | 1250mm |
Min.height | 110mm |
Lifting time | 30s-50s |
Length of the platform | 1685mm |
Platform width | 1040mm |
Motor power | 3.0kw-380v/3.0kw-220v |
Oil pressure rating | 24Mpa |
Air pressure | 0.6-0.8 MPa |
Weight | 450kg |

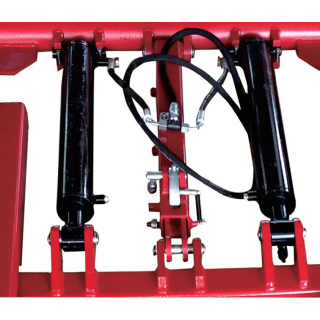

Product Details
1. Electric Release
2. Strengthening Arm Movable
3. With 4 Pairs of High and Low Tray

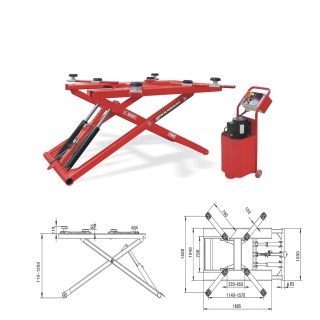

4. Dimensions
